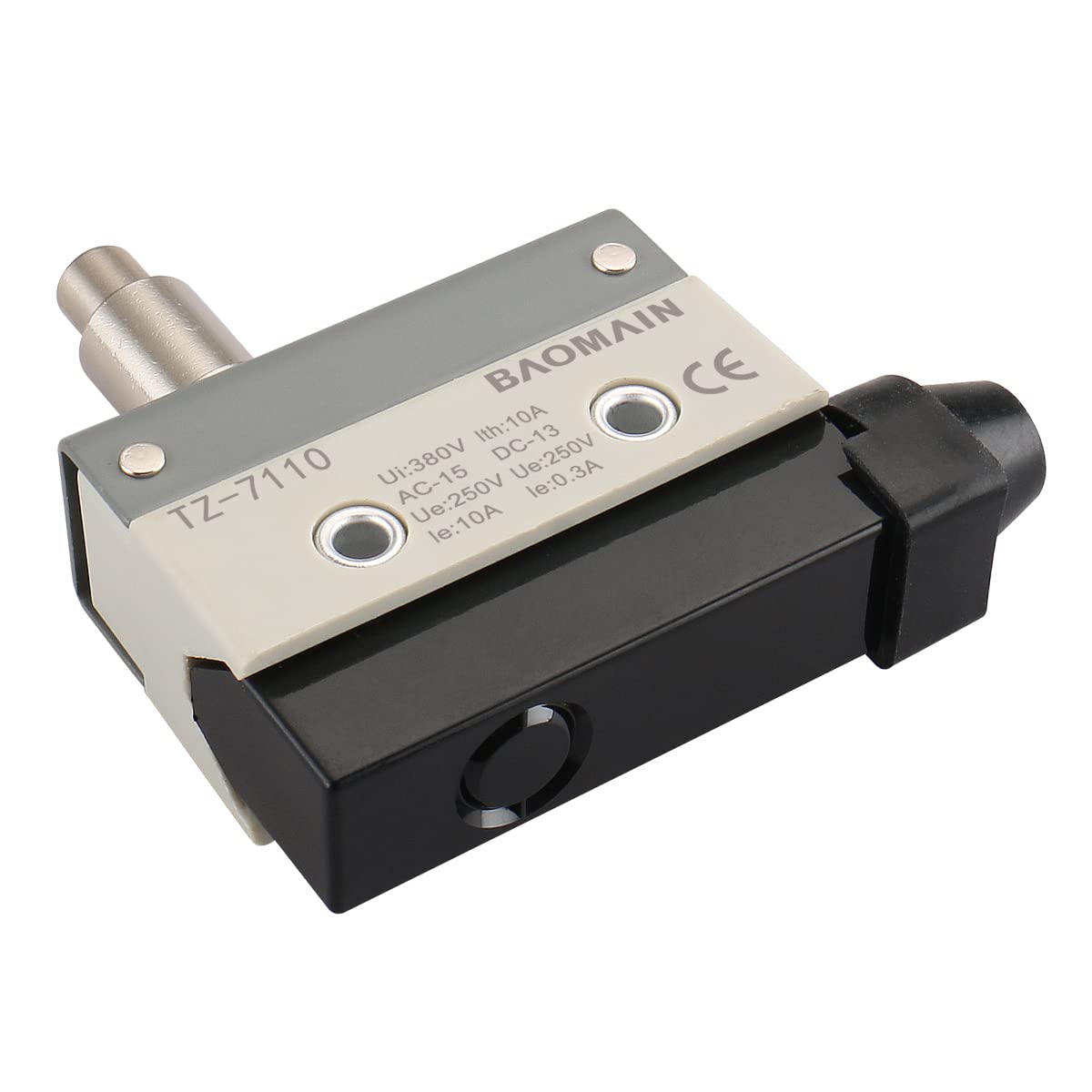

BAOMAIN 10A 380V Horizontal Limit Switch, Push Plunger SPDT 1NC+1NO Momentary TZ-7110 for Machinery Position Monitoring, CNC & Industrial Automation 1-Pack

【Technical Parameter】Operation speed: 0.05mm-50cm/sec*1Electrical life：Above 500,000 timesOperating frequency Electiacal: 30 operations/min.Contact resistance: 15mΩ max. (initial value)Insulation resistance: 100mΩ above(at 500VDC)Vibration Action:10 to 55Hz,1.5 mm pairs swingAmbient operating Humidity：35- 95% RHAmbient operating temperature：-10~+80℃/14℉~176℉ (With no icing)Shock: Mechanical durable: 1,000m/Sec²(about 100g's); Malfunction: 100m/Sec² (about 10g's)【Operating Characteristics】Operating Force=OF(Max): 5.88NRelease Force=RF(Max): 0.98NPre-travel=PT(Max): 2.0mmOver-travel=OT(Min): 5.0mmMovement Differential=MD(Max): 0.8mmOperational Postition=OP: 44±1.2mmEnclosed Switches with Built-in Basic Switches for High Repeatability and Durability.The Limit Switch is widely used in various mechanical to monitor the position of moving parts of machines and plant.The Short Push Plunger Limit Switch also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection.Suitable for applications demanding higher mechanical strength, dustproof and drip-proof properties than those on basic switches.Simple 3-Terminal Wiring LogicForget complex electrical diagrams. To get your TZ-7110 up and running, just follow this simple logic:Terminal C (Common): This is your main power input terminal.Normally Open (NO) Setup: Use this terminal if you want a device (like a light or buzzer) to turn ON only when the plunger is physically pressed.Normally Closed (NC) Setup: Use this terminal if you want a machine or motor to STOP immediately when the plunger is triggered (Limit Protection).Note: The switch features a momentary action, meaning it will automatically reset to its original state as soon as the pressure is removed from the plunger.

• High Repeatability & Precision: Features a sensitive push plunger actuator designed for high-accuracy limit detection. This switch ensures consistent performance in monitoring the travel and position of moving mechanical parts.
• Versatile SPDT Logic: Equipped with a 1NO+1NC (Single Pole Double Throw) contact configuration. This dual-circuit design provides the flexibility to either start or stop equipment once the plunger is triggered by physical contact.
• Industrial Durability: Engineered for long-term reliability with an electrical life exceeding 500,000 cycles. The robust housing is built to withstand rigorous industrial environments, offering high mechanical strength and stable operation.

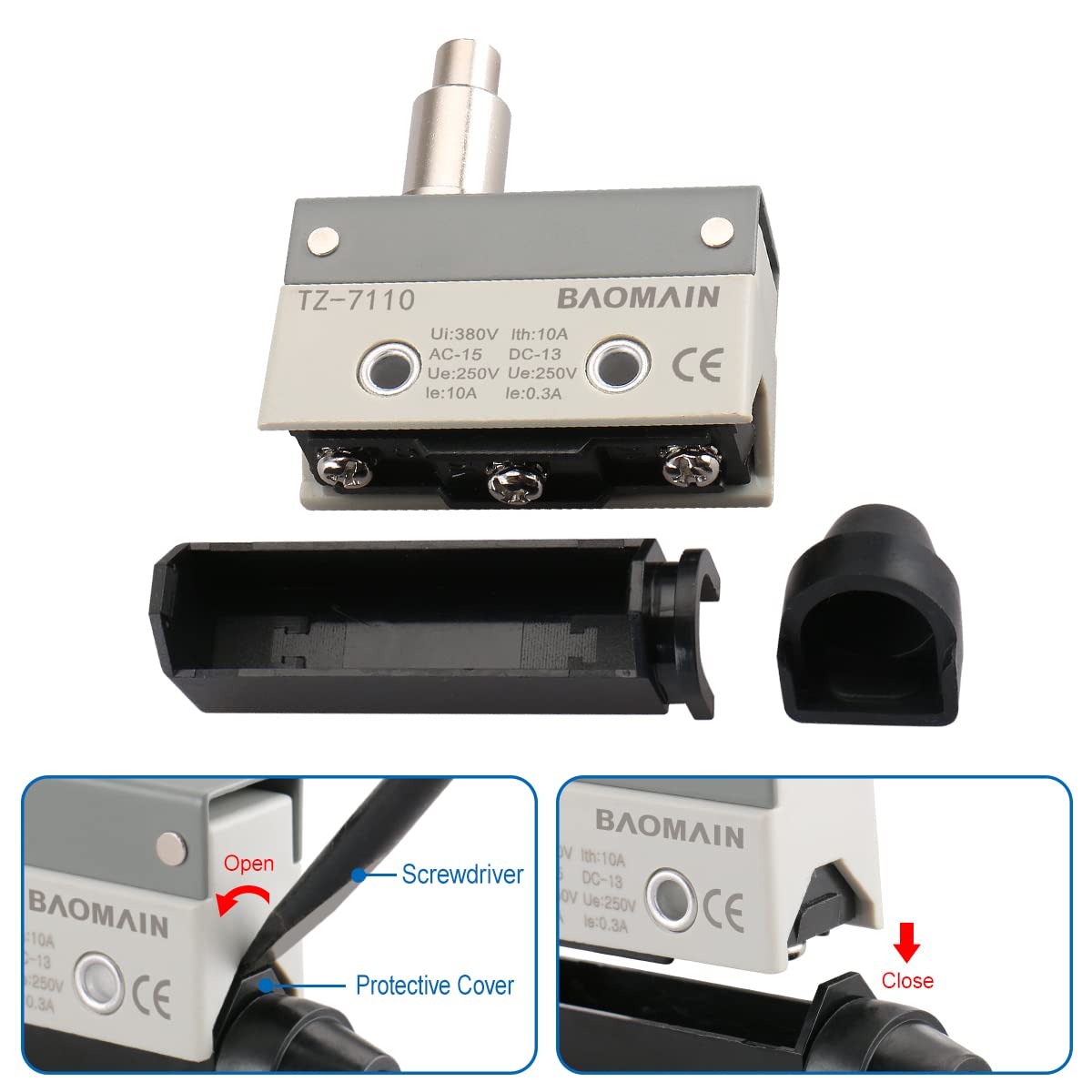

• Easy Installation & Access: Features a standard horizontal mounting design with three accessible screw terminals. The removable protective cover makes wiring quick and straightforward, fitting seamlessly into various industrial control setups.
• Simplified Wiring Guide: Connect with confidence using this no-nonsense 3-terminal setup: Terminal C (Common) is your main input. Use NO (Normally Open) if you want the circuit to close when pressed, or use NC (Normally Closed) to cut power once the limit is reached.
